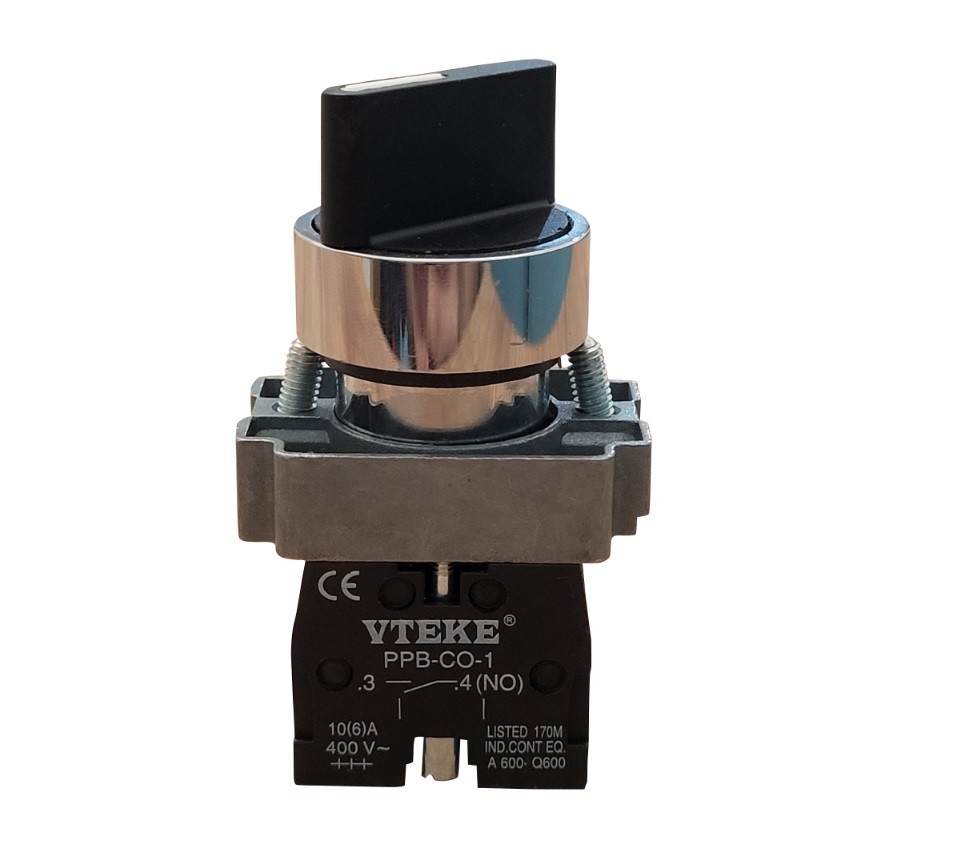

PPB-SE selector switch series is designed according to EN60947-1 standard.
MPB-SE series has metal base and mounted by screws.
Extra contact block can be added to the switch and
multiple contact block can be mounted on each other.
Technical Data
| Parameters | Values |
| Insulation Rated Voltage | 600V |
| Frequency | 50-60Hz for AC. |
| Rated Thermal Current | 10A |
| Utilization Category | AC-15, DC-13 |
| Standard | EN60947-1 |
| Contact resistance | ≤50mA |
| Recommended Torque | 0.9Nm |
| Wire Size | 0.5mm2 to 2.5mm2 |
| Hole Dia | 22mm |
| Mechanical Life | > 30 x 104 (times) |
| Working Temprature | -25 to +70C Degree |
| Spring Type | Stable (no Return Spring) |
| Switching Angle | 90degree for 2-Positions |
| 45degree for 3-Positions |
Coding Table
| CODE | TYPE | CONTACT |
| MPB-SE-01 | 2 Positions stable switch | 1 NO |
| MPB-SE-11 | 3 Positions stable switch | 1 NO + 1 NO |
Dimensions
