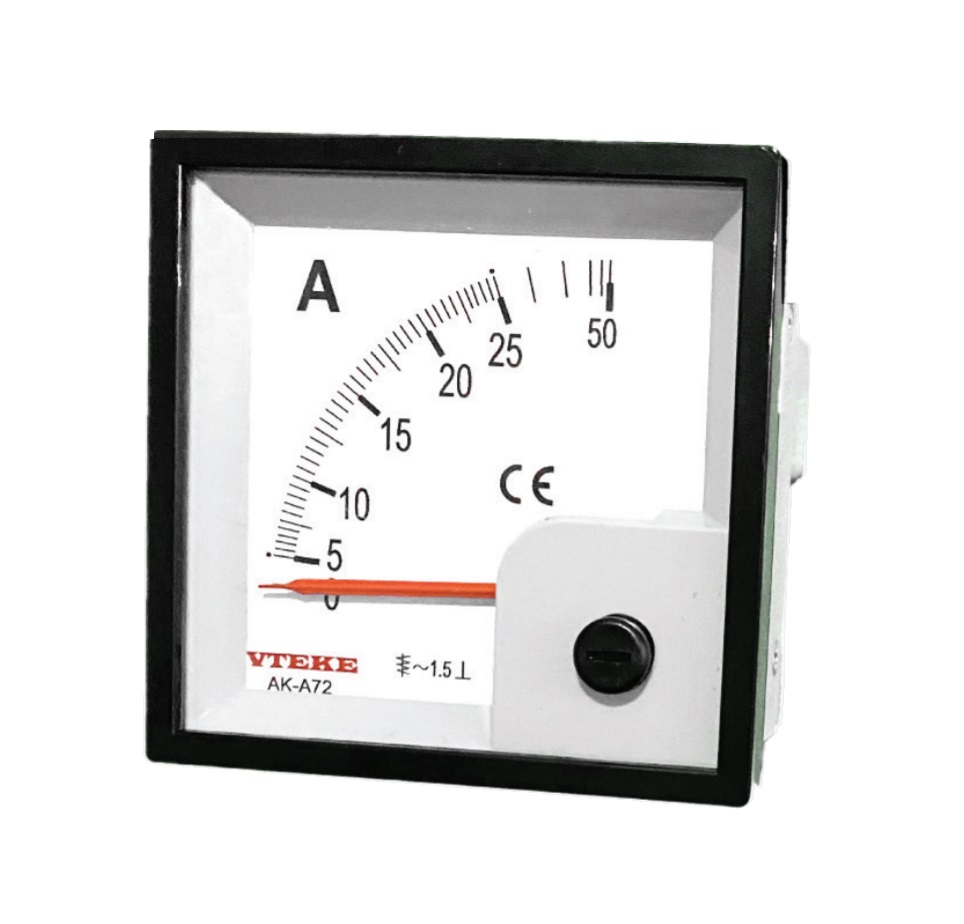

AK-A SERIES is Panel-type analog AMMETER with sealable
terminal cover, suitable for rated current of 5A-100A for direct
connection, and 5/5A-6300/5A & 5/1A-6300/1A for CT connection.
Available in 2 sizes, 72×72 and 96×96. Scale is almost linear
(above 10% readings) with knif edge pointer. Housing is from
polycarbonate to tolerate high tempratures.
Coding Table
| Size 72 x 72 code | Size 96 x 96 code | Measured Current |
| AK-A72-10D | AK-A96-10D | 10A |
| AK-A72-15D | AK-A96-15D | 15A |
| AK-A72-20D | AK-A96-20D | 20A |
| AK-A72-25D | AK-A96-25D | 25A |
| AK-A72-30D | AK-A96-30D | 30A |
| AK-A72-40D | AK-A96-40D | 40A |
| AK-A72-50D | AK-A96-50D | 50A |
| AK-A72-60D | AK-A96-60D | 60A |
| AK-A72-75D | AK-A96-75D | 75A |
| AK-A72-80D | AK-A96-80D | 80A |
| AK-A72-100D | AK-A96-100D | 100A |
Technical Data
| Parameter | Value |
| Standards | IEC 60051-2, EN 60051-2 |
| Meter Type | Iron Moving Coil |
| Rated Measured Current | With CT: 5/5A to 6300/5A |
| With CT: 5/1A to 6300/1A | |
| Direct type: 5A to 100A | |
| Accuracy | Class 1.5 |
| Terminal | İntegral terminal cover for extra safety |
| Case | Non-flammable self-extinguishing ABS / polycarbonate |
| Ambient temperature (operation) | -25 C ~ +85 C |
| Test voltage | 3 kV for 1 min |
| Max system voltage | 0.72 kV |
| Frequency | 45-65 HZ |
| Pointer Deflection | 0 to 90 Degree |
| Front Panel (mm) | AK-V72: 72×72, AK-V96: 96×96 |
| Control Panel Cut Out (mm) | AK-V72: 66.5 x 66.5 cm , AK-V96: 90.5 x 90.5 cm |
Dimensions
| Parameter | Value |
| Standards | IEC 60051-2, EN 60051-2 |
| Meter Type | Iron Moving Coil |
| Rated Measured Current | With CT: 5/5A to 6300/5A |
| With CT: 5/1A to 6300/1A | |
| Direct type: 5A to 100A | |
| Accuracy | Class 1.5 |
| Terminal | İntegral terminal cover for extra safety |
| Case | Non-flammable self-extinguishing ABS / polycarbonate |
| Ambient temperature (operation) | -25 C ~ +85 C |
| Test voltage | 3 kV for 1 min |
| Max system voltage | 0.72 kV |
| Frequency | 45-65 HZ |
| Pointer Deflection | 0 to 90 Degree |
| Front Panel (mm) | AK-V72: 72×72, AK-V96: 96×96 |
| Control Panel Cut Out (mm) | AK-V72: 66.5 x 66.5 cm , AK-V96: 90.5 x 90.5 cm |
