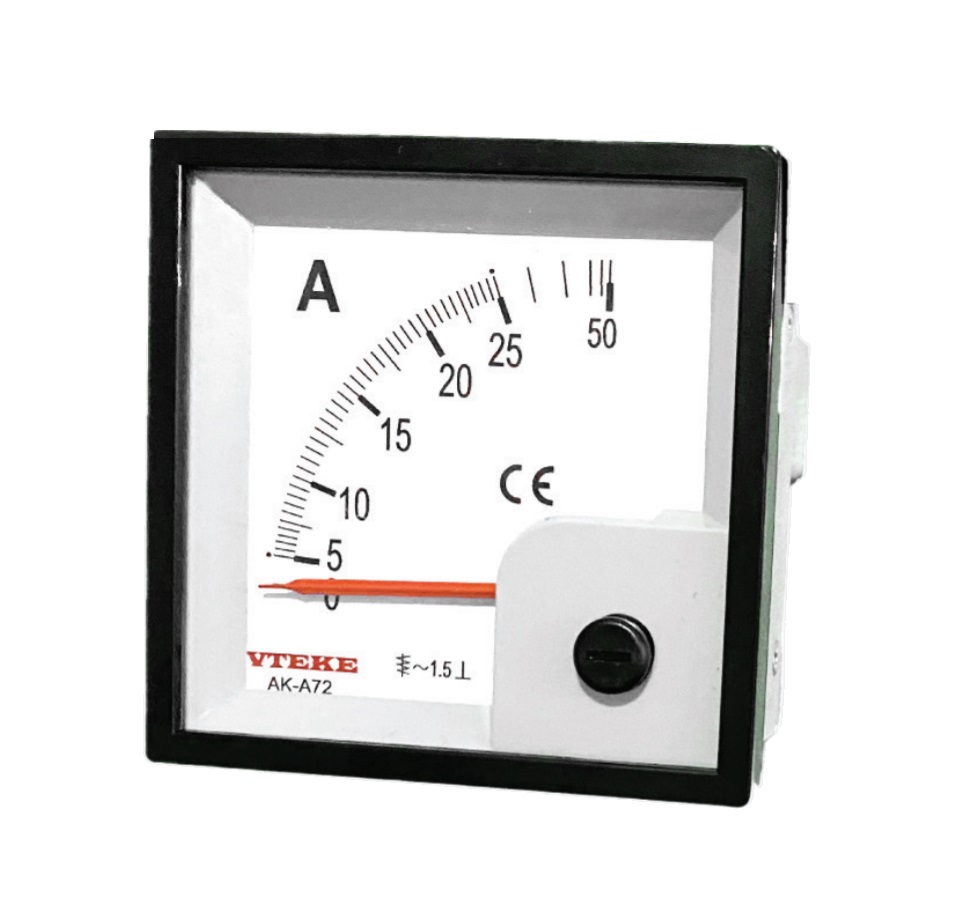

K-A SERIES is Panel-type analog AMMETER with sealable
terminal cover, suitable for rated current of 5A-100A for direct
connection, and 5/5A-6300/5A & 5/1A-6300/1A for CT connection.
Available in 2 sizes, 72×72 and 96×96. Scale is almost linear
(above 10% readings) with knif edge pointer. Housing is from
polycarbonate to tolerate high tempratures.
Coding Table
| Size 72 x 72 code | Size 96 x 96 code | Measured Current |
| AK-A72-5-1 | AK-A96-5-1 | 5A |
| AK-A72-10-1 | AK-A96-10-1 | 10A |
| AK-A72-15-1 | AK-A96-15-1 | 15A |
| AK-A72-20-1 | AK-A96-20-1 | 20A |
| AK-A72-25-1 | AK-A96-25-1 | 25A |
| AK-A72-30-1 | AK-A96-30-1 | 30A |
| AK-A72-40-1 | AK-A96-40-1 | 40A |
| AK-A72-50-1 | AK-A96-50-1 | 50A |
| AK-A72-60-1 | AK-A96-60-1 | 60A |
| AK-A72-75-1 | AK-A96-75-1 | 75A |
| AK-A72-80-1 | AK-A96-80-1 | 80A |
| AK-A72-100-1 | AK-A96-100-1 | 100A |
| AK-A72-125-1 | AK-A96-125-1 | 125A |
| AK-A72-150-1 | AK-A96-150-1 | 150A |
| AK-A72-160-1 | AK-A96-160-1 | 160A |
| AK-A72-200-1 | AK-A96-200-1 | 200A |
| AK-A72-250-1 | AK-A96-250-1 | 250A |
| AK-A72-300-1 | AK-A96-300-1 | 300A |
| AK-A72-400-1 | AK-A96-400-1 | 400A |
| AK-A72-500-1 | AK-A96-500-1 | 500A |
| AK-A72-600-1 | AK-A96-600-1 | 600A |
| AK-A72-630-1 | AK-A96-630-1 | 630A |
| AK-A72-750-1 | AK-A96-750-1 | 750A |
| AK-A72-800-1 | AK-A96-800-1 | 800A |
| AK-A72-1000-1 | AK-A96-1000-1 | 1000A |
| AK-A72-1200-1 | AK-A96-1200-1 | 1200A |
| AK-A72-1250-1 | AK-A96-1250-1 | 1250A |
| AK-A72-1500-1 | AK-A96-1500-1 | 1500A |
| AK-A72-1600-1 | AK-A96-1600-1 | 1600A |
| AK-A72-2000-1 | AK-A96-2000-1 | 2000A |
| AK-A72-2500-1 | AK-A96-2500-1 | 2500A |
| AK-A72-3000-1 | AK-A96-3000-1 | 3000A |
| AK-A72-3200-1 | AK-A96-3200-1 | 3200A |
| AK-A72-4000-1 | AK-A96-4000-1 | 4000A |
| AK-A72-5000-1 | AK-A96-5000-1 | 5000A |
| AK-A72-6000-1 | AK-A96-6000-1 | 6000A |
| AK-A72-6300-1 | AK-A96-6300-1 | 6300A |
Technical Data
| Parameter | Value |
| Standards | IEC 60051-2, EN 60051-2 |
| Meter Type | Iron Moving Coil |
| Rated Measured Current | With CT: 5/5A to 6300/5A |
| With CT: 5/1A to 6300/1A | |
| Direct type: 5A to 100A | |
| Accuracy | Class 1.5 |
| Terminal | İntegral terminal cover for extra safety |
| Case | Non-flammable self-extinguishing ABS / polycarbonate |
| Ambient temperature (operation) | -25 C ~ +85 C |
| Test voltage | 3 kV for 1 min |
| Max system voltage | 0.72 kV |
| Frequency | 45-65 HZ |
| Pointer Deflection | 0 to 90 Degree |
| Front Panel (mm) | AK-V72: 72×72, AK-V96: 96×96 |
| Control Panel Cut Out (mm) | AK-V72: 66.5 x 66.5 cm , AK-V96: 90.5 x 90.5 cm |
