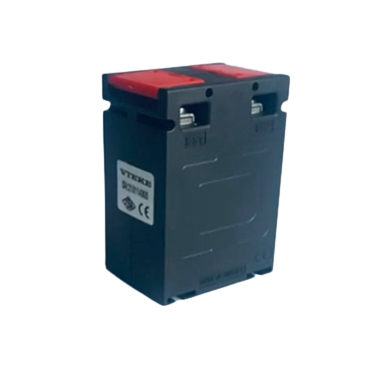

BK1C Series Closed Type Current Transformer

BK1C closed type current transformer with primary

and secondary sealable terminals cover, suitable for

primary currents from 5A to 50A AC; available in

accuracy classes Class 0.5S, 0.5 or Class 1.0.

Description

Reviews (0)

Technical Data

Standards	IEC 60044-1, IEC 61869-2, VDE 0414-1, DIN57414, BS3938, BS7626, EN 61869-2
CT Ratio	From 1A 50A
Rated Power	Up to 10VA
Accuracy class	Class 0.5S, Class 0.5, Class 1.0
Terminal	Integral terminal cover, high cross section brass terminal for extra safety
Case	Non-flammable self-extinguishing ABS/PC
Mounting	Plate Mounted or DIN rail mounted
Ambient temperature (operation)	-25 C ~ +85 C
Number of input	1
Thermal rated short-time current	Ith = 60 In
Thermal rated continuous current	Id = 1 * In
Rated frequency	50 Hz … 60 Hz
Surge current limitation factor	FS 5
Test voltage	3 kV for 1 min
Max system voltage	0.72 kV

Coding Table
