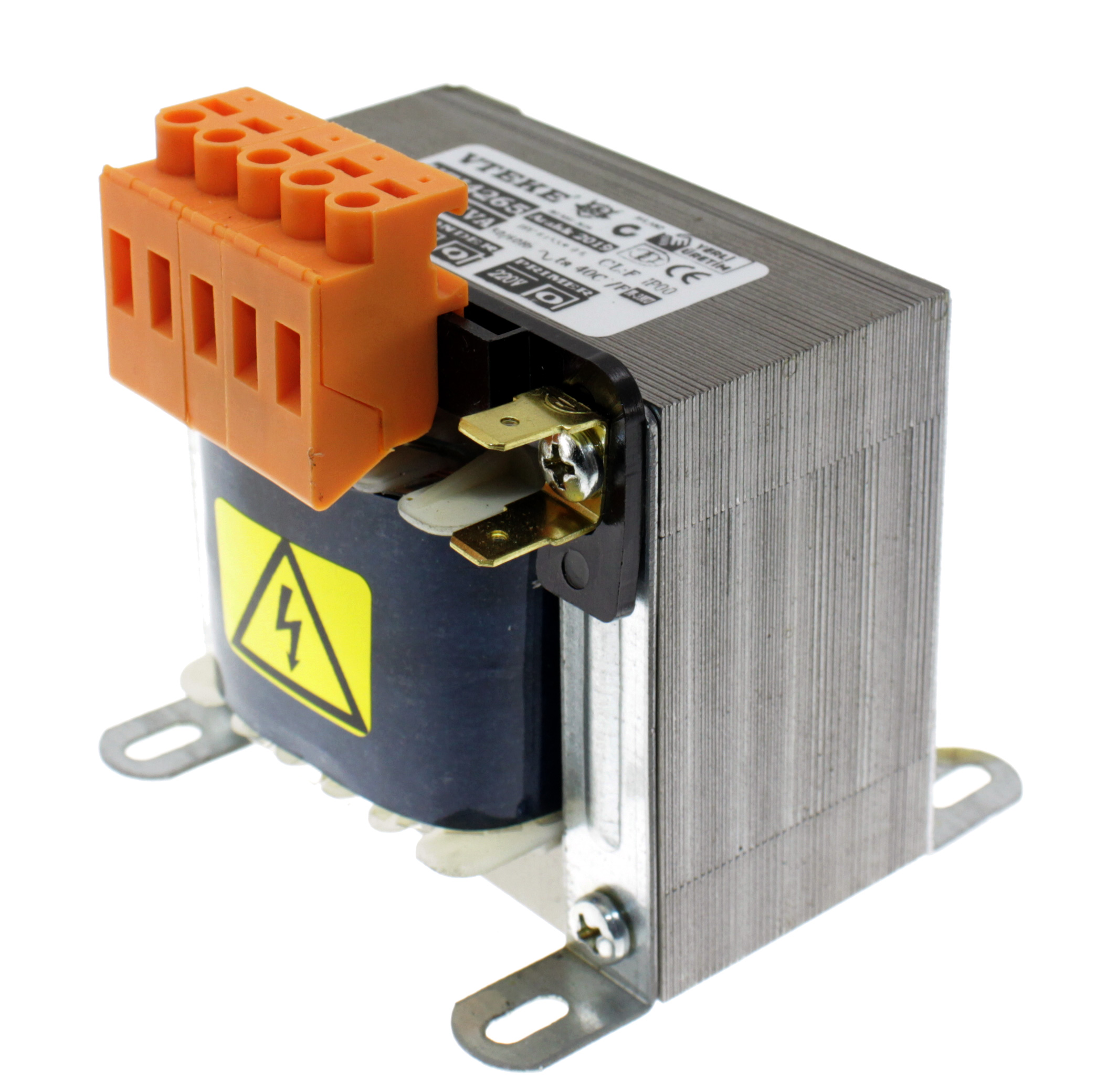

Control Transformer, 25VA to 1000VA

Control Transformer, 25VA to 1000VA

Single phase voltage transformer used for control circuits with
primary voltages 415V, 380V, 240V, 220V, 110V
and secondary voltages 220V, 110V, 60V, 48V, 36V, 24V, 16V, 12V, 10V, 6V.

Contact For More Details
Description
Reviews (0)

Coding Table

Stok No Power a(mm) b(mm) c(mm) h(mm) Weight(Kg) Input Current Output Current
VEI2425 25 VA 60 30 55 60 0,76 0,114 A 1,042 A
VEI2430 30 VA 60 42 68 60 1,02 0,137 A 1,25 A
VEI2440 40 VA 76 25 55 76 1,1 0,182 A 1,67 A
VEI2450 50 VA 76 34 65 76 1,26 0,228 A 2,084 A
VEI2465 65 VA 84 30 65 85 1,36 0,296 A 2,709 A
VEI2475 75 VA 84 40 75 85 1,81 0,341 A 3,126 A
VEI24100 100 VA 84 45 80 85 1,95 0,455 A 4,167 A
VEI24150 150 VA 96 56 95 95 3,1 0,682 A 6,25 A
VEI24200 200 VA 108 45 90 105 3,2 0,91 A 8,34 A
VEI24250 250 VA 108 55 100 105 3,9 1,137 A 10,417 A
VEI24300 300 VA 120 42 95 120 4 1,37 A 12,5 A
VEI24350 350 VA 120 73 125 120 6,55 1,6 A 14,59 A
VEI24400 400 VA 133 67 120 135 7,4 1,82 A 16,67 A
VEI24500 500 VA 150 60 120 150 8,66 2,28 A 20,84 A
VEI24630 630 VA 150 70 130 150 10,05 2,87 A 26,25 A
VEI24750 750 VA 150 80 140 150 11,45 3,41 A 31,25 A
VEI24850 850 VA 171 70 140 170 14,69 3,87 A 35,42 A
VEI241000 1000 VA 171 80 150 170 15,1 4,55 A 41,67 A

Current Transformers Coding Map

Technical Data
Parameter Value
Standards IEC EN 61558-2-6
Frequency 50Hz, 60Hz
Primary Winding Voltage 240V AC
Secondary Winding Voltage 24V AC
IP Class IP00
Wire Temperature Class H – 180C
Isolation Test 3 kV
Working Ambient Temperature – 15 C / + 40 C

Dimensions

Stok No Power a(mm) b(mm) c(mm) h(mm)
VEI2425 25 VA 60 30 55 60
VEI2430 30 VA 60 42 68 60
VEI2440 40 VA 76 25 55 76
VEI2450 50 VA 76 34 65 76
VEI2465 65 VA 84 30 65 85
VEI2475 75 VA 84 40 75 85
VEI24100 100 VA 84 45 80 85
VEI24150 150 VA 96 56 95 95
VEI24200 200 VA 108 45 90 105
VEI24250 250 VA 108 55 100 105
VEI24300 300 VA 120 42 95 120
VEI24350 350 VA 120 73 125 120
VEI24400 400 VA 133 67 120 135
VEI24500 500 VA 150 60 120 150
VEI24630 630 VA 150 70 130 150
VEI24750 750 VA 150 80 140 150
VEI24850 850 VA 171 70 140 170
VEI241000 1000 VA 171 80 150 170
