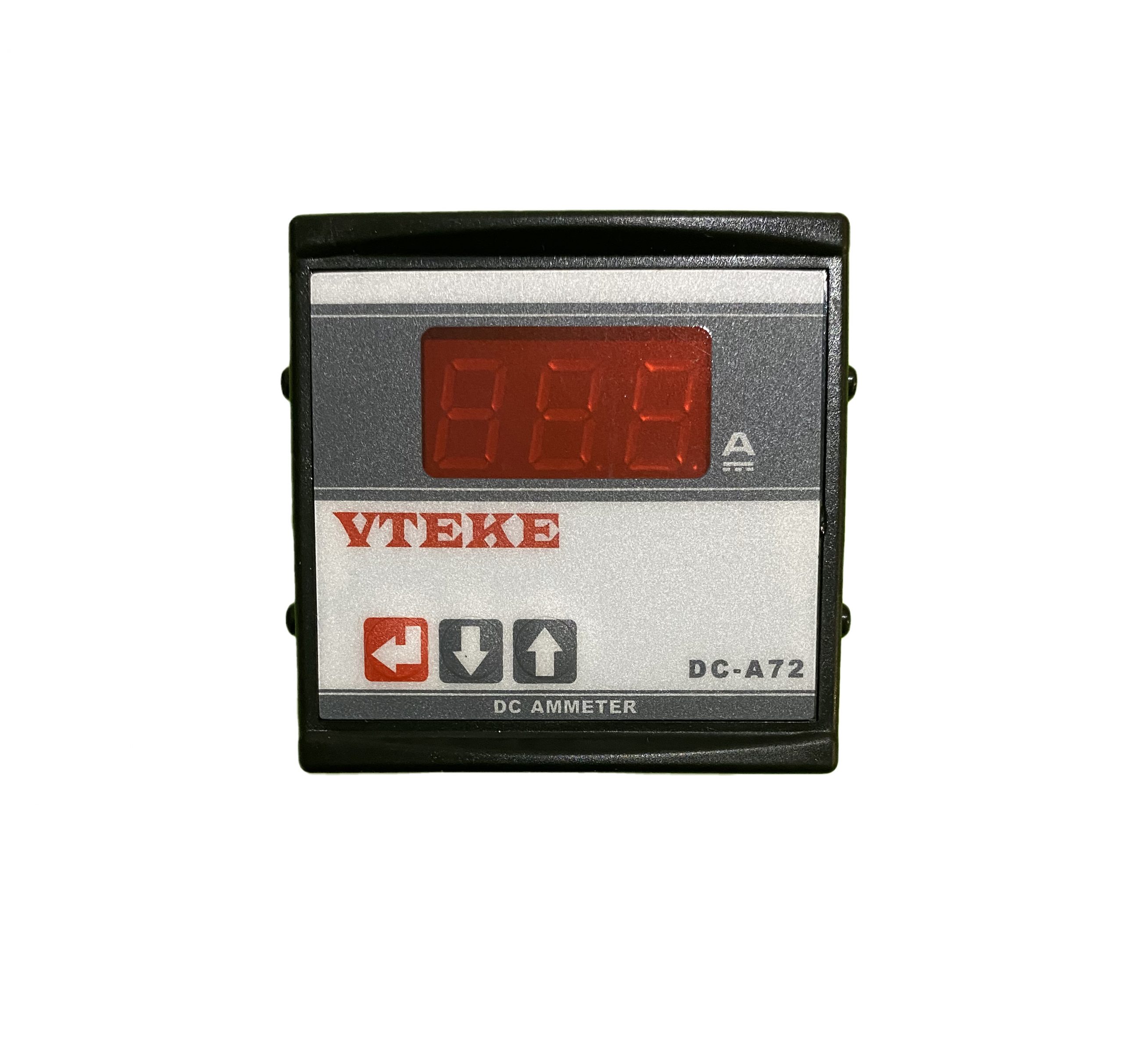

DC Panel Amper 72X72

Description

Reviews (0)

Technical Data

Parameter	Value
Operating Voltage	150-270VAC
Operating Frequency	50 / 60 Hz
Operating Power	<6VA
Operating Temperature	-20°C…..55°C
Amper Measuring Range	Measurement Range: 0.3mV-70mV
	Shunt Values: 10A-900A (60mV)
Accuracy	%±5 (VK-A72DC)
Weight	<220Gr
Protection Class	IP41[Front Panel], IP20[Body]
Connection Type	Plug-in Terminal Connection
Cable Diameter	1.5mm²
Mounting	Assembly to panel front cover

Connection Diagram

Dimensions
