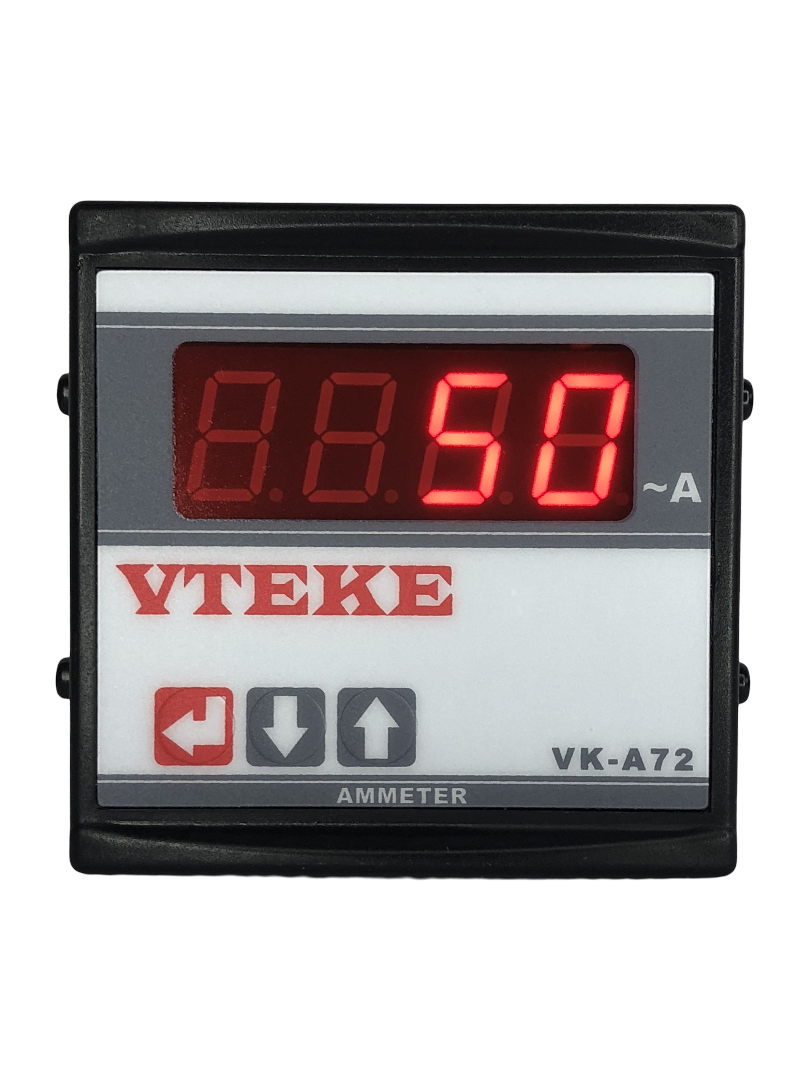

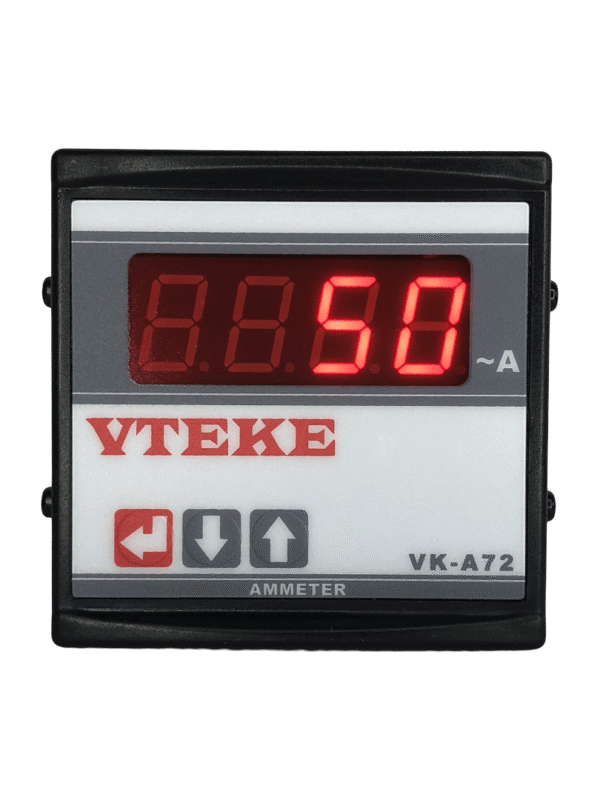

Digital Panel Ammeter 72 X 72

Description

Reviews (0)

Technical Data

Parameter	Value
Operating Voltage	150-270VAC
Operating Frequency	50 / 60 Hz
Operating Power	<4VA
Operating Temperature	-20°C…..55°C
Voltage Measuring Range	100mA – 5.5A
Accuracy	%±1
Weight	<220Gr
Protection Class	IP41[Front Panel], IP20[Body]
Connection Type	Plug-in Terminal Connection
Cable Diameter	1.5mm²
Mounting	Assembly to panel front cover
Panel Hole	91mm x 91mm (VK-V96)
	68mm x 68mm (VK-V72)
Working Altitude	<2000 meter

Connection Diagram

Dimensions
