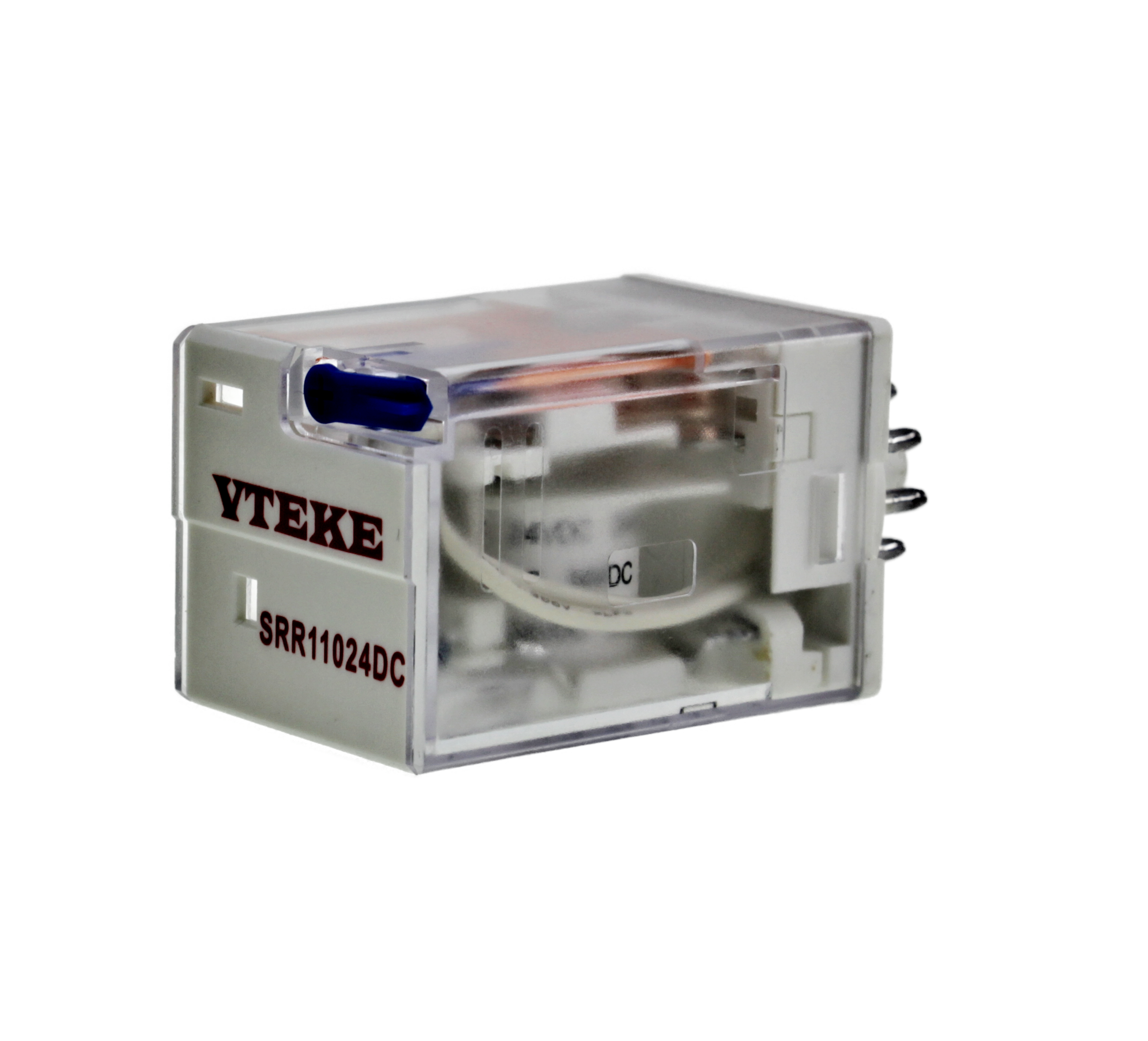

This relay is manufactured according to IEC- 61810-1 standard.
Contact is rated to 10A. It is occupied with test mechanism and indication LED.
AC relays has orange color mechanism parts while DC relays has blue mechanism parts.
Coding Table
| AC COIL CODES | Nominal voltage VAC | Operate voltage VAC | Release voltage VAC | Coil resistance (Ω±10%) |
| SRR-11-024-AC | 24 | 19.2 | 7.2 | 72 |
| SRR-11-220/240-AC | 220/ 240 | 176 | 72.0 | 6050 / 720 |
| DC COIL CODES | Nominal voltage VDC | Operate voltage VDC | Release voltage VDC | Coil resistance (Ω±10%) |
| SRR-11-012-DC | 12 | 9.6 | 1.2 | 90 |
| SRR-11-024-DC | 24 | 19.2 | 2.4 | 360 |
| SRR-11-048-DC | 48 | 38.4 | 4.80 | 1440 |
| SRR-11-110-DC | 110 | 88.0 | 11.0 | 7560 |
| SRR-11-220-DC | 220 | 176 | 22.0 |
Dimension
Technical Data
| Parameter | Value |
| Insulation resistance | ≥500MΩ 500VDC |
| Ambient temperature | -40℃～+70℃（No condensation) |
| Dielectric strength | Between coil and contact ≥1500VAC1min |
| Between open contacts≥1000VAC1min | |
| Between contacts≥1500VAC1min | |
| Operate / Release time | ≤20ms/20ms |
| Terminal type | Socket mounting |
| Rated coil power | 1.6W/2.8VA |
| Contact form | 2Z,2H,2D |
| Contact resistance | ≤ 100MΩ(1A 6VDC) |
| Contact material | AgCdO, AgSnO2 |
| Contact capacity | 10A 250VAC/ 28VDC |
Connection Diagram
