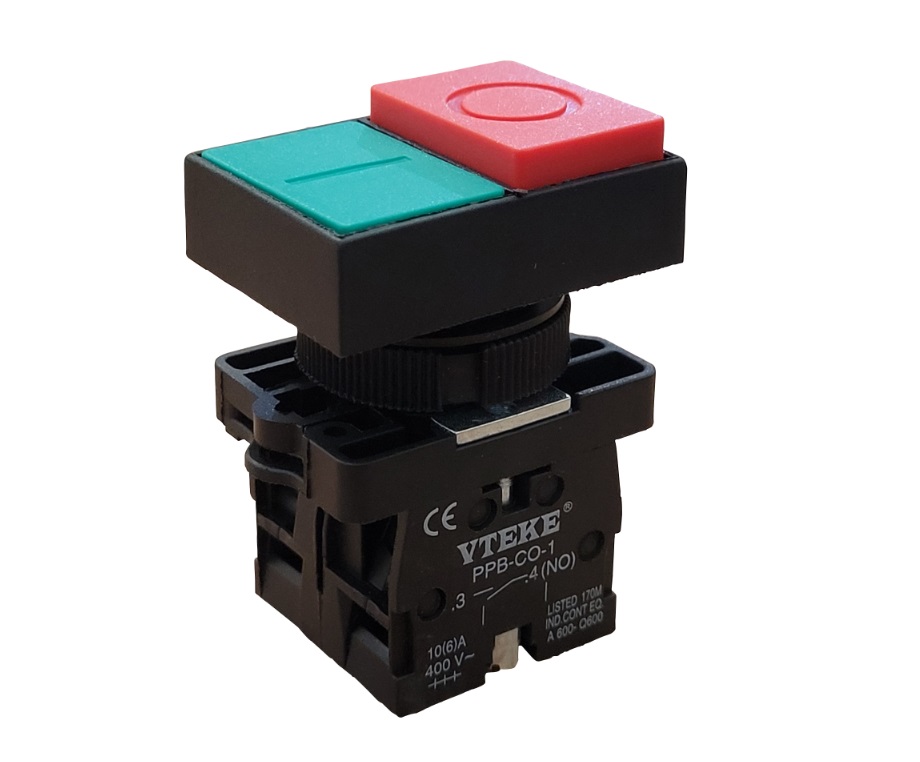

PPB-RG On-Off push button series is designed according to EN60947-1 standard.
Extra contact block can be added to the button and multiple contact block can be mounted on each other.
Technical Data
| Parameters | Values |
| Insulation Rated Voltage | 600V |
| Frequency | 50-60Hz for AC. |
| Rated Thermal Current | 10A |
| Utilization Category | AC-15, DC-13 |
| Standard | EN60947-1 |
| Contact resistance | ≤50mA |
| Recommended Torque | 0.9Nm |
| Wire Size | 0.5mm2 to 2.5mm2 |
| Hole Dia | 22mm |
| Mechanical Life | > 30 x 104 (times) |
| Working Temprature | -25 to +70C Degree |
| Insulation Degree | IP40 |
Dimension
